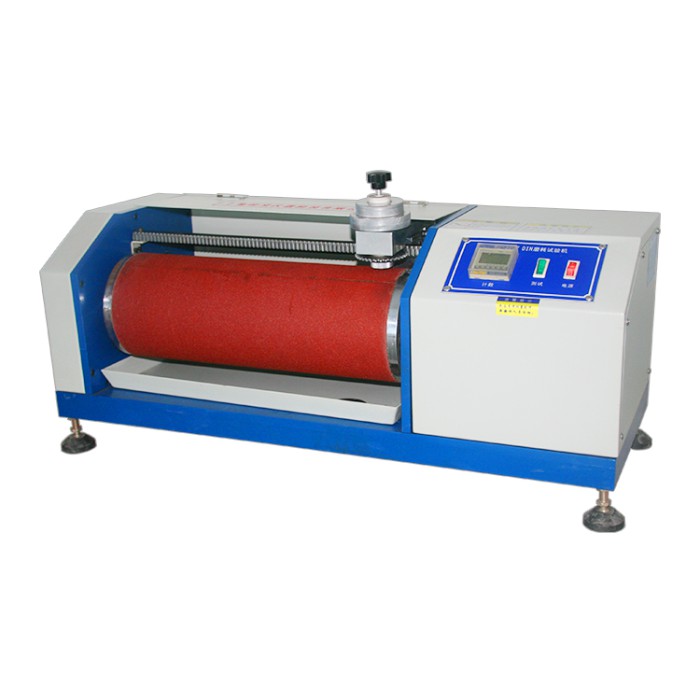

DIN Abrasion Resistance Wear Testing Machine Rubber Testing
Tester Summary:The main function ofShoes Din Abrasion Testeris to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive
  • Tel:13711888650
  • Product Details

Tester Summary:

The main function of Shoes Din Abrasion Tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.



Main Functions:

Shoes Din Abrasion Tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.



Corresponding Standard:

DIN-53516ISO-4649GB/T9867-88



Applicable Industry:

Shoes Din Abrasion Tester applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; commodity inspection, arbitration and technical supervision departments.



Technical Parameters:

Specimen Load10N± 0.2N
Testing Load2.5N, 7.5N
Specimen Sizedia 16mm, thickness at least 6mm.
Diameter of wear wheel150mm
Speed of wear wheel40 ±1RPM
Emery cloth Specification60 #, 425 ±473 ±1.5 (mm).
Testing Length40M (about 84 rotate)
Horizontal displacement4.2mm / rotate
Test-arm weight250 ± 5 (g)
Shift screw6 teeth / inch
Limit rotation85 rotate
Set rotation84 rotate (about 40M).
Return formElectric automatic reset
Drive Power40W; 1/30
Power220V 50HZ
Machine Dimensions600 ±330 ±420 (mm)
Machine Weight75kg
